Interceptors

Interceptors

Unmatched comfort and performance
While spending precious time at sea we believe you want an enjoyable experience. Humphree systems provide unmatched onboard comfort for the world of leisure yachting. It provides features no other system can match in terms of ACTIVE stabilization, performance and reliability over time. This system lowers roll and slamming by up to 50%. And it feels like even more. Your family boat ride will be a whole new experience.

Our interceptors make the difference between enjoyment and seasickness; between low and high fuel consumption and between bad and excellent visibility at the helm.
LEARN MORE INTERCEPTOR GUIDE
X-Series

X -Series for 25-60 feet boats

The X-Series is avaliable in five standard sizes. Intended mainly for boats 25-60 feet. They deliver the same reliability and superior performance as all larger Humphree interceptors. The X-Series features the same control system, ultra-fast servo actuators and control panel. For superior control of dynamic hull motions they all have an interceptorblade with a powerful 50mm (2”) stroke.


  • Five standard sizes: X300, X450, X600, X750 and X900. 300 – 900mm
  • Stroke length: 50mm
  • Mounting plates: 20mm composite or 20mm aluminium
  • Transom thickness:
  • Short shaft kit (standard),<80mm transom thickness.
  • Long shaft kit (option),<140mm transom thickness
  • Bureau Veritas approved through-hull designa
H-Series

H-Series

H-Series characterizes a customizable interceptor and are available from 350 – 1500 mm in width. No matter how the hull of your boat has been designed there is always a solution for our interceptors to fit the hull. And also be fit under your water jet, a perfect fit at the shine or make it follow the radius of the propeller tunnels,


  • Stroke length: 50mm
  • Mounting plates: 20mm composite or 25mm aluminium
  • Transom thickness:
  • Short shaft kit (standard),<80mm transom thickness.
  • Long shaft kit (option),<140mm transom thickness
  • Bureau Veritas approved through-hull design
HA-Series

HA-Series

This interceptor line with an asymmetric placed servo unit can be used when it has to fit under a water jet or if preferred area of the transom is limited. Also when the inner structure on the inside of the transom does not allow for a centre placed servo. The HA-interceptor can be custom shaped for a perfect fit and comes in sizes 500 – 1100mm.
  • Available sizes:  HA500 – HA1100 (50mm stroke, asymmetric).
  • Stroke length: 50mm
  • Mounting plates: 20mm composite or 30mm aluminium
  • Transom thickness:
  • Short shaft kit (standard),<80mm transom thickness.
  • Long shaft kit (option),<140mm transom thickness
  • Bureau Veritas approved through-hull design
HE-Series

HE-Series

The HE-Series interceptors are designed for heavy duty use. With their powerful 75mm stroke length they will add 50% more lift force than the standard 50mm interceptors. The HE-interceptor comes in sizes 750 – 1500mm and can be custom shaped for a perfect fit.
  • Available sizes: 750 – 1500mm
  • Stroke length: 75mm
  • Mounting plates: 20mm composite or 30mm aluminium
  • Transom thickness:
  • Short shaft kit (standard),<80mm transom thickness.
  • Long shaft kit (option),<140mm transom thickness
  • Bureau Veritas approved through-hull design

HL-Series

HL-SeriesOur HL-Series are designed and built for the large and heavy planing vessels. With a mechanical high performing structure the HLS-interceptors blade has a powerful 110mm stroke length. The HLS interceptor is available from 800mm to 1500mm width.
  • Available size: 800mm – 1500mm
  • Stroke length: 110mm
  • Servo unit: SU530
  • Mounting plates: Integrated in interceptor structure
  • Transom thickness: 8-32mm (steel, aluminium)

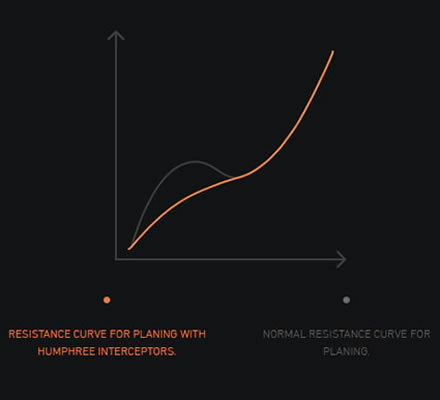

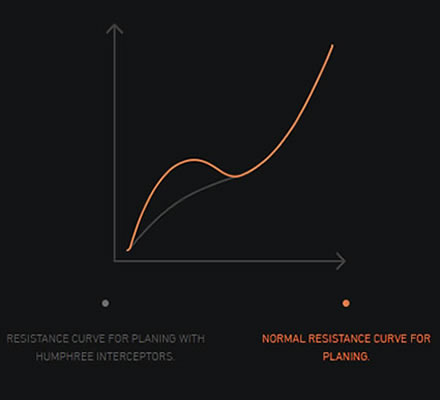

Easier planing and stabilised ride
Easy control with automatic systems
The HCS-5 system

The HCS-5 system

The HCS-5 combines exceptional mechanical quality with electronic control including motion sensors and world class brushless servo motors to provide instant and exact response to the hull dynamics.

Adding the fine-tuned boat control options Automatic Trim, Automatic List, Coordinated Turn or Active Ride Control will result in optimum comfort and performance regardless if the captain is a seasoned expert or a less experienced operator.

All the units are connected with watertight cables with the servo motors positioned protected inside the hull. HCS-5 can easily be upgraded with more functions, interceptors and fins.
HCU500

HCU500

The HCU500-series control units consists of advanced sensors, calculating algorithms and works on 11 – 32 VDC. The control unit handles the system functions, controls the servo motors and powers the system. In a network with electrical fins, these are separately powered by 24VDC electricity.
CP502

CP502

CP502 is our new and advanced control panel – very easy to use – with a large colour display which is sunlight readable and therefore also suitable for outdoor installation, such as the flybridge.

The control panel can change between day- and night mode and user selectable colour themes.

CP502 is NMEA2000 certified which makes many installations easier.

For service and support the control panel has an integrated Wi-Fi access point that enables remote access via your Internet connected device such as a mobile phone or computer.
